2014 JLG 1230ES Scissor Lift

Product Description



2014 JLG 1230ES Scissor Lift

Dimensional Data
Ground Clearance 3 in.
Ground Entry Height 1 ft 10 in.
Machine Height 5.4 ft
Machine Length 4.5 ft
Machine Width 2.5 ft
Platform Height 12 ft
Tire Size 100 x 323 (Solid, non-marking)
Reach Specifications
Platform Height 12 ft
Working Height 18.6 ft
Performance Data
Drive Speed - Platform Elevated 0.5 mph
Drive Speed - Platform Lowered 3 mph
Drive System 24V Electric
Gradeability 25 %
Maximum Drive Height 12 ft
Maximum Lift Height 12 ft
Platform Capacity 500 lb
General Specifications
Machine Weight 2358.9 lb
Power Source
Batteries 4 x 6V, 220 A-h

*Doorstep Nationwide Delivery at about $2-$5 a mile Expedited, depending on your location.  Shipping is typically 1-5 business days from the time the carrier picks the unit up, not from the time you pay.  Rates change with the price of fuel, driver availability, load availability, weather, delivery distance, and more.
*Financing Available via Clicking on the Green Button on this Listing
*Have a Semi-Trailer or Machinery to sell or trade?  Call or Email us at purchasing@itagequipment.net


Specifications, prices, and descriptions are subject to change in photographs, wording, specifications listed, and videos at any time, with or without notice.  There is a lot you cannot see in a picture, from inner parts, bearings, covered electrical wiring, all sides of the tires, and more.  We are not responsible for what cannot be seen in an image or video.  We do not sell any equipment with the promise that it will pass an inspection of any kind.  If the unit has a current inspection, great, but it may still need to pass a new inspection for your work requirements.  While we strive for accuracy, we are human and, at times, do make listing errors.  However, we work incredibly hard to list and represent everything as accurately as possible.  Let us know if you need any specification confirmations or further information about any listing.  ITAG supports all military personnel for their service and offers discounts to show our appreciation.

Price: $3,990

Video: https://youtu.be/QD1QlGJWbQ0

Product Specifications

Year2014
TypeScissor Lifts
Manufacturer JLG
Model1230ES
ConditionUsed
Stock NumberSpecials
MLS Number12194823

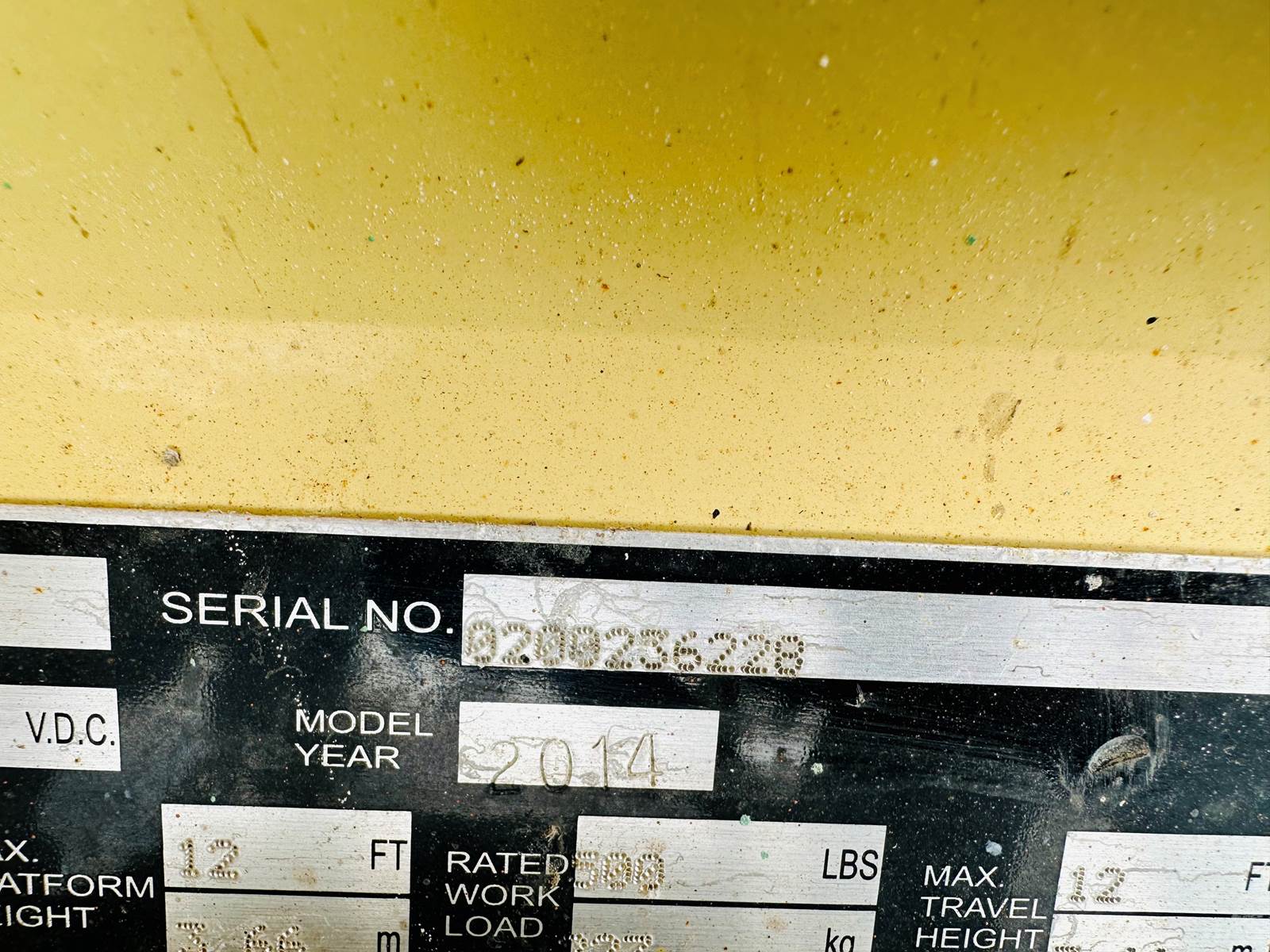

Serial Number0200236228
AvailabilityIn Stock
Quantity1
Weight & Dimensions
Length4.5 ft.
Width2.5 ft.
Weight1800
Height5.4
Ground Clearance3.0 in
Engine
Fuel TypeElectric
Drivetrain
Drive Type2WD
Body & Chassis
Enclosed CabNo
Wheels & Brakes
Tires100x323 non marking
Interior & Controls
Air ConditioningNo
HeatingNo
Addons & Upfits
WinchNo
OutriggersNo
Additional Details
Lift Capacity in Lbs500
