2016 JLG 4069LE Scissor Lift - 800lb Capacity, 40ft Platform Height

Product Description

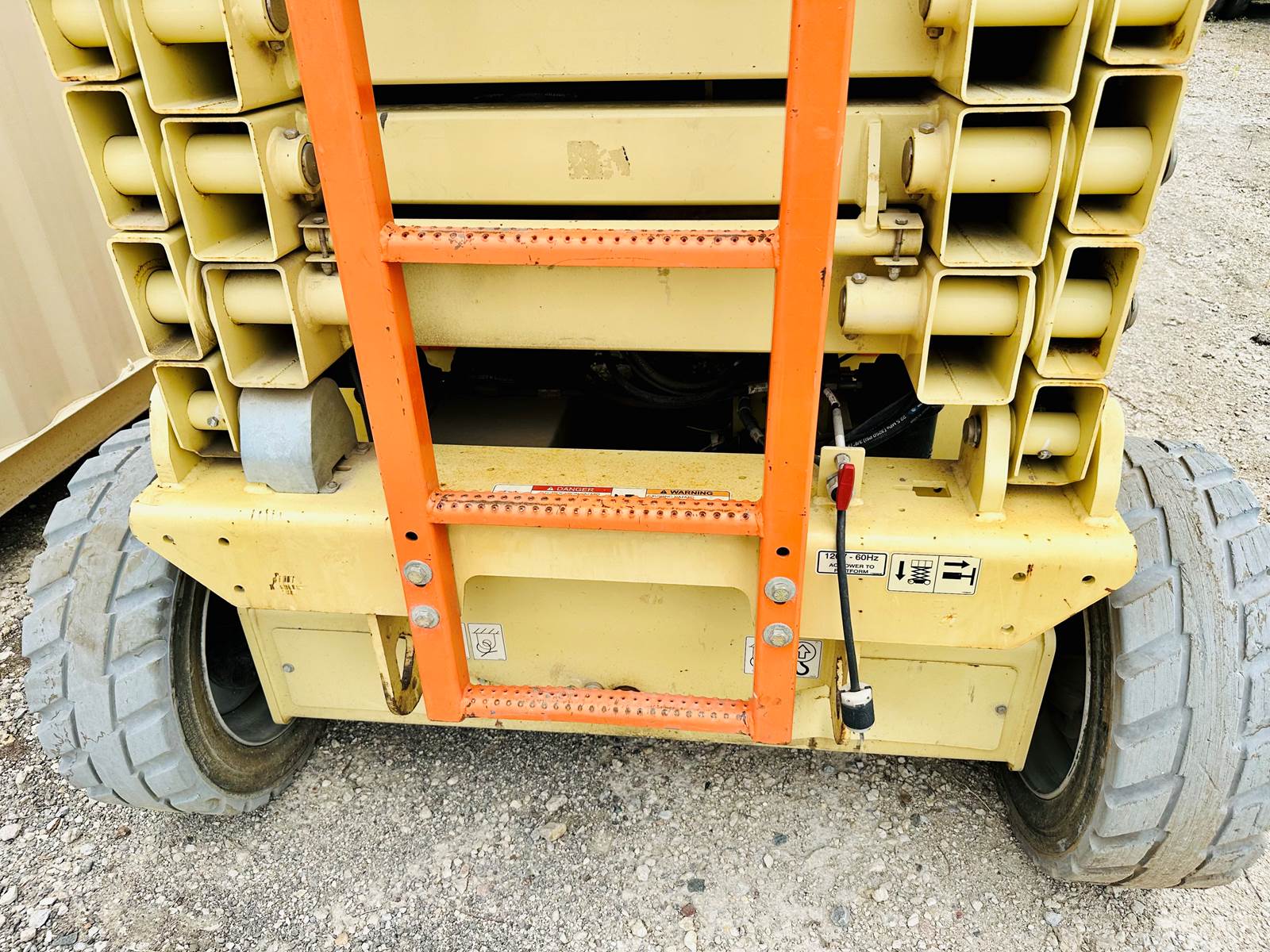

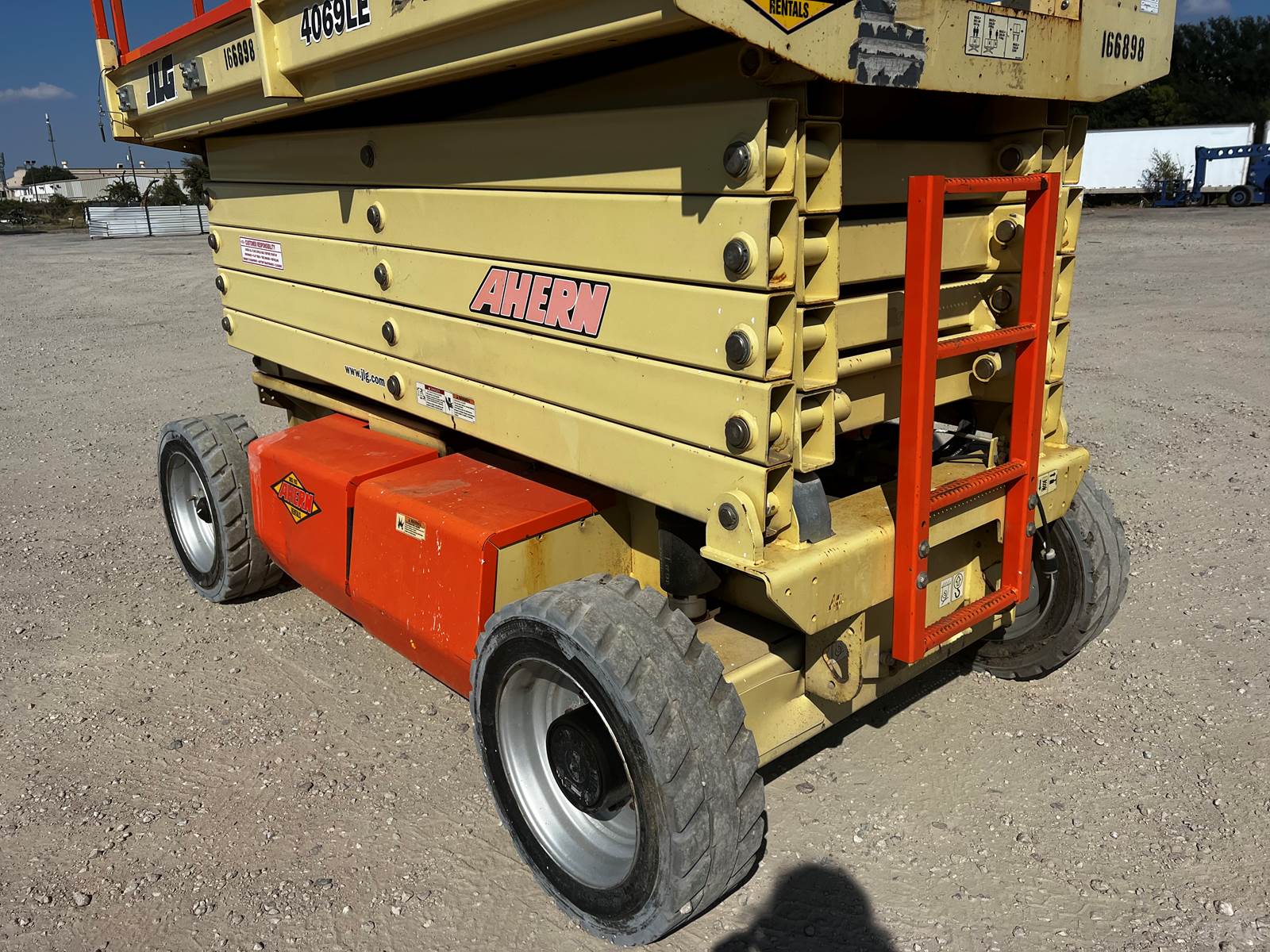

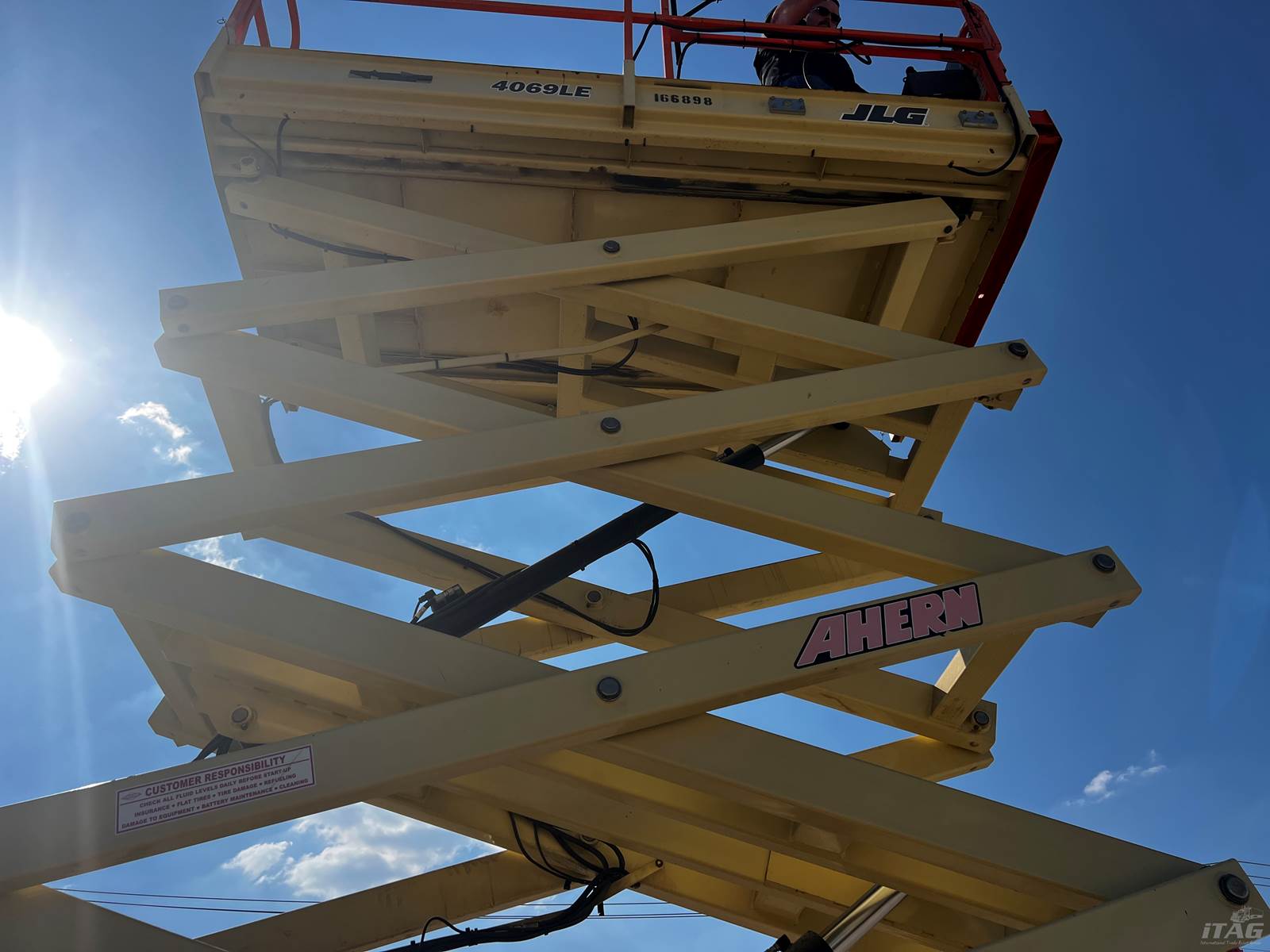

2016 JLG 4069LE Scissor Lift

Power Source
Batteries 8 x 6V, 370 A-h
Charger 20 A SCR Automatic
General Specifications
Brakes Spring Applied Hyd Released Discs
Capacity - Hydraulic Reservoir 8.5 gal.
Ground Bearing Pressure 4.30 Kg/cm2
Hydraulic Pump Single Section Gear Pump
Machine Weight 11684 lb
Performance Data
Drive Speed - Platform Elevated 0.5 mph
Drive Speed - Platform Lowered 3 mph
Lift Time 54 sec.
Lower Time 50 sec.
Maximum Drive Height 30 ft
Maximum Lift Height 40 ft
No Stabilizers
Platform Capacity 800 lb
Platform Capacity - Extension 264 lb
Turning Radius - Outside 16 ft
Dimensional Data
Ground Clearance 8 in.
Machine Height 9.3 ft
Machine Height - Rails Folded 6.7 ft
Machine Length 10.3 ft
Machine Width 5.7 ft
Platform Extension Length 3 ft
Platform Height - Lowered 5.7 ft
Platform Railing Height 3.6 ft
Tire Size 240/55 x 17.5 Non-Marking
Wheelbase 7.6 ft
Reach Specifications
Platform Height 40 ft
Working Height 46.6 ft
**When we were operating the Lift, Display Read "Malfunction Error"**
*Doorstep Nationwide Delivery at about $2-$5 a mile Expedited, depending on your location.  Shipping is typically 1-5 business days from the time the carrier picks the unit up, not from the time you pay.  Rates change with the price of fuel, driver availability, load availability, weather, delivery distance, and more.
*Financing Available via Clicking on the Green Button on this Listing
*Have a Semi-Trailer or Machinery to sell or trade?  Call or Email us at purchasing@itagequipment.net

Specifications, prices, and descriptions are subject to change in photographs, wording, specifications listed, and videos at any time, with or without notice.  There is a lot you cannot see in a picture, from inner parts, bearings, covered electrical wiring, all sides of the tires, and more.  We are not responsible for what cannot be seen in an image or video.  We do not sell any equipment with the promise that it will pass an inspection of any kind.  If the unit has a current inspection, great, but it may still need to pass a new inspection for your work requirements.  While we strive for accuracy, we are human and, at times, do make listing errors.  However, we work incredibly hard to list and represent everything as accurately as possible.  Let us know if you need any specification confirmations or further information about any listing.  ITAG supports all military personnel for their service and offers discounts to show our appreciation.

Price: $13,990

Video: https://youtu.be/NCaJvVo3J60

Product Specifications

TypeScissor Lifts
Manufacturer JLG
Stock NumberSpecials
MLS Number12194414
Serial Number020025353G
AvailabilityIn Stock
Weight & Dimensions
Length10 ft.
Width6 ft.
Ground Clearance8.0 in
Fuel TypeElectric
Drive Type2WD
Body & Chassis
Enclosed CabNo
Wheels & Brakes
Tires240/55 x 17.5 Non-Marking
Interior & Controls
Air ConditioningNo
Addons & Upfits
Additional Details
Lift Capacity in Lbs800
Video Watch Video
