2023 Load King 53ft Lowboy Trailer - 55 Ton, 26ft Well, Hydraulic Detach, Non-Ground Bearing, Quad Axle, Pony Motor, Flip Axle, Outriggers, Lift Axle

Product Description

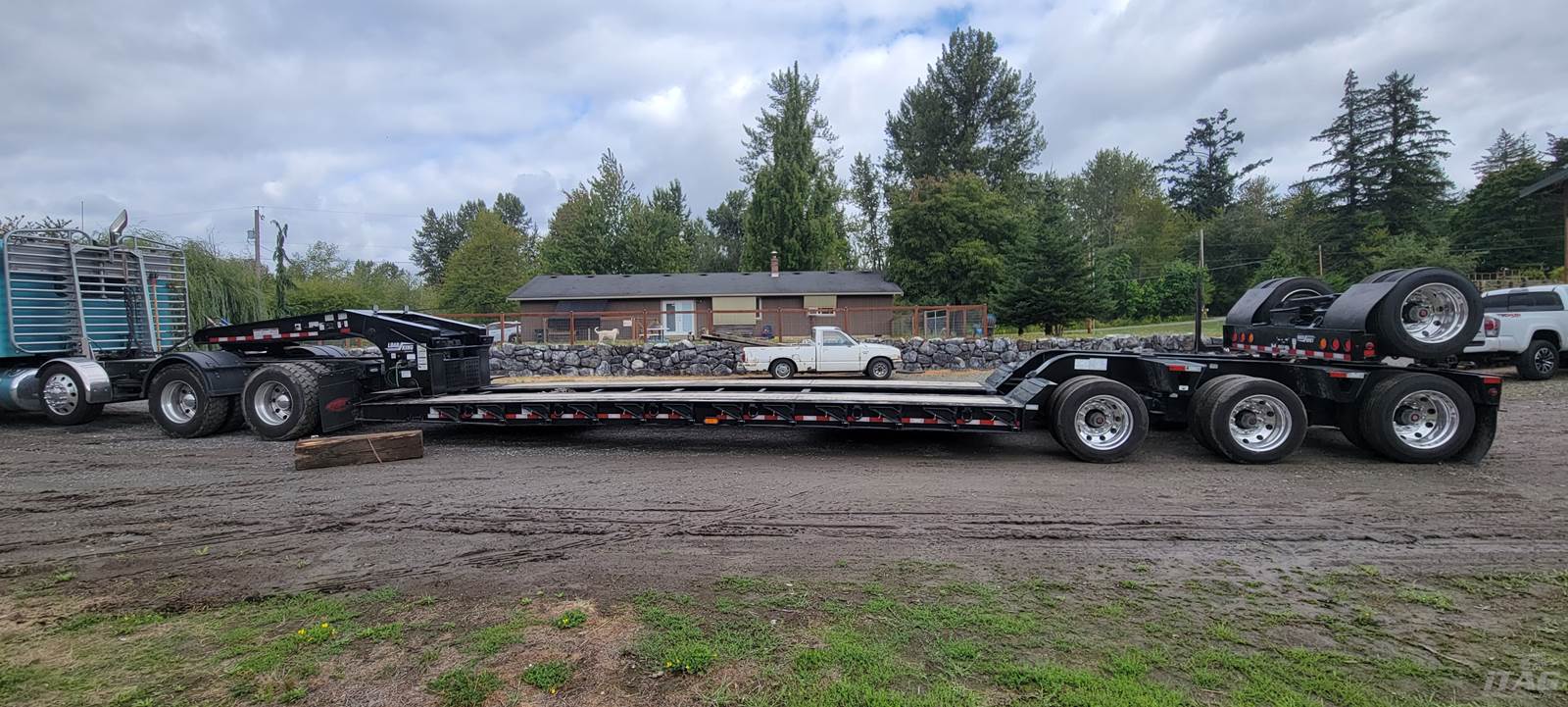

2023 Load King 53 ft Lowboy Trailer

Steel Frame
Wood Floor
Tri Axle With Flip Axle
Air Ride Suspension
55 Ton
26 ft Well Length
Hydraulic Detach
Non-Ground Bearing
Adjustable Ride Height
Rear Lift Axle
30" Double Hinged Spring Assisted Heavy Duty Front Flip Ramps
13 Pair Chain Slots in Outer Flanges
18" Loaded Deck Height
13 Pair Full Depth Out-Riggers With Spring Loaded Retainer Clips
6 Pair Bent D-Rings on Each Side
Pony Motor

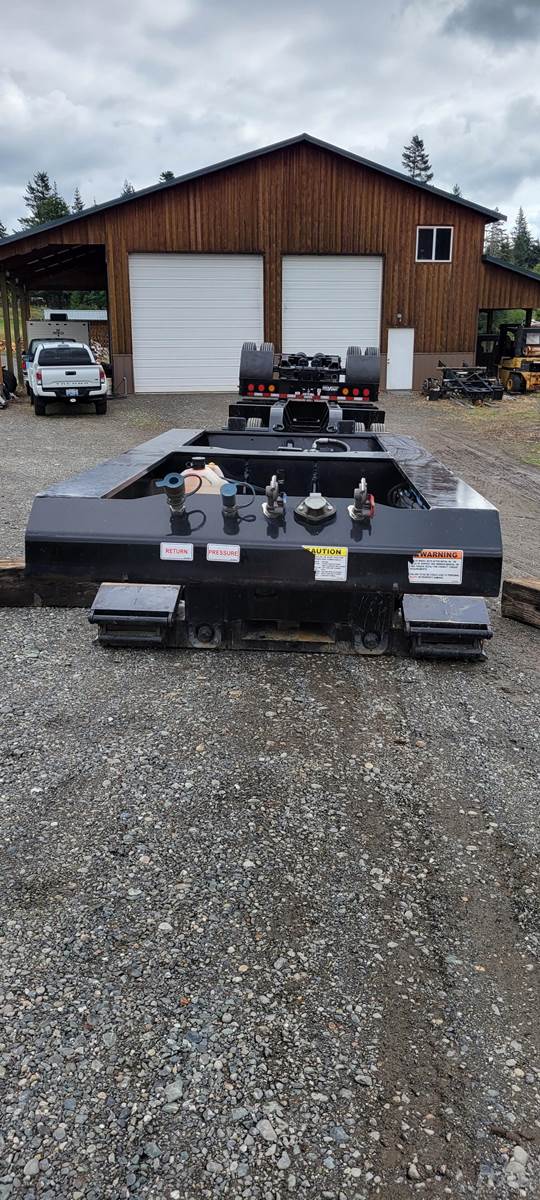

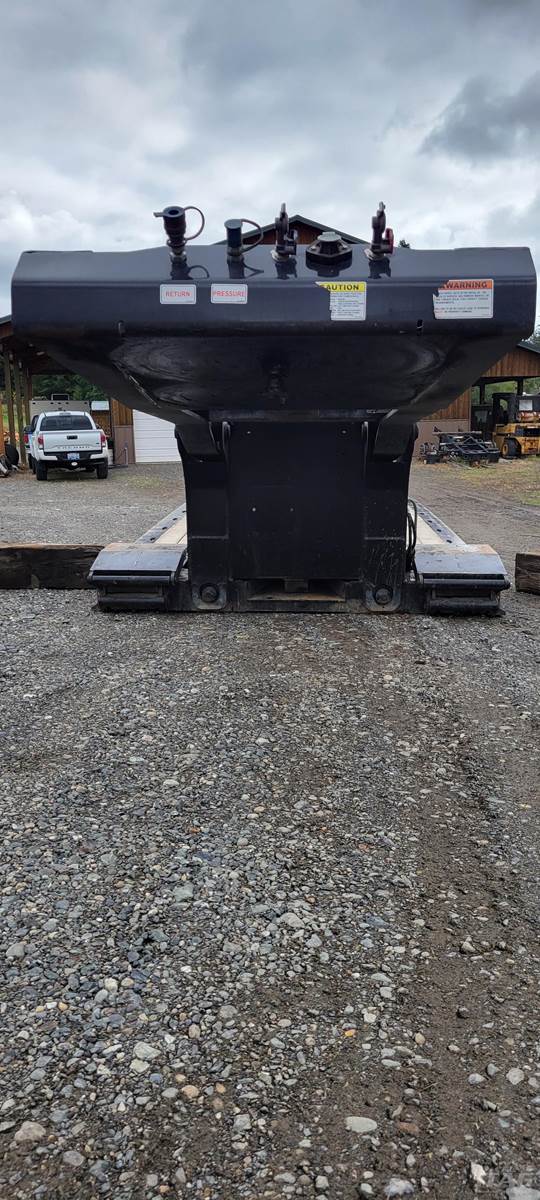

12ft 9in Gooseneck
Air Activated Self Locking Pin On Gooseneck
Fully Recessed Air and Electrical Hookup
Swing Clearances of 86", 110"
GVWR: 135,920LBS
GAWR: 20,280LBS
Tires: 255/70R22.5H
Aluminum Outside Wheels
Model#: 503/554SSSF
Coupler Height: 52
110,000lbs in 12ft Concentrated Weight Rating
25,920lb Est Empty Weight
Aluminum Outside Wheels
Flip Axle Information
GVWR: 22,700LBS
GAWR: 20,280LBS
Tires: 255/70R22.5H
Model#: FL201-HD-37
Weight: 2,700LBS
Flip Axle VIN: 5LKF05110P1033375
Aluminum Outside Wheels
**Equipment on Unit not Included in Sale**
*Doorstep Nationwide Delivery at about $1,500+ on a load-out basis or $3-$5 a mile Expedited. Load-out shipping is typically 5-7 business days from the time the carrier picks the trailer up, not from the time you pay. Rates change with the price of fuel, driver availability, load availability, weather, delivery distance, and more.
*Financing is Available via Clicking on the Green Button on this Listing
*Have a Semi-Trailer to sell or trade? Call or Email us at purchasing@itagequipment.net
*This trailer is a private party deal that we administer the sale of. We are required to have a consignment agreement and title copies on file for every trailer we have listed. Not all trailers we have listed are at our Fort Worth, TX location.


Specifications, prices, and descriptions are subject to change in photographs, wording, specifications listed, and videos at any time, with or without notice. There is a lot you cannot see in a picture, from seals to bearings to spindles, inner coupler plates, all sides of the tires, and more. We are not responsible for what cannot be seen in an image or video. We do not sell any trailers, or equipment with the promise that it will pass a DOT inspection. If the unit has a current inspection, great, but it may still need to pass a new inspection. While we strive for accuracy, we are human and, at times, do make listing errors. However, we work incredibly hard to list and represent everything as accurately as possible. Let us know if you need any specification confirmations or further information about any listing. ITAG supports all military personnel for their service and offers discounts to show our appreciation.

Price: $133,990

Video: https://youtu.be/hbaf32z3Iic

Product Specifications

Year2023
TypeLowboy Trailers
Manufacturer Load King
Model53x102
ConditionUsed
MLS Number12264478
VIN5LKL53350P1033366
AvailabilityIn Stock
Quantity1
Weight & Dimensions
Length53 ft.
Width102 in.
Weight25,920
Well Length26 ft.
Floor Height18" Loaded
Ground Clearance16.0 in
GTWR135,920
Gross Weight Capacity55
Capacity & Size
Capacity55 Ton
Body & Chassis
SuspensionAir Ride
CompositionSteel
Floor TypeWood Floor
Number of Rear AxlesQuad
Axle TypeFixed
ExtendableNo
Wheels & Brakes
Wheel TypeAluminum Outside
TiresYokohama
Tire Size255/70R22.5H
# of Tires16
Addons & Upfits
RampYes
OutriggersYes
Additional Details
